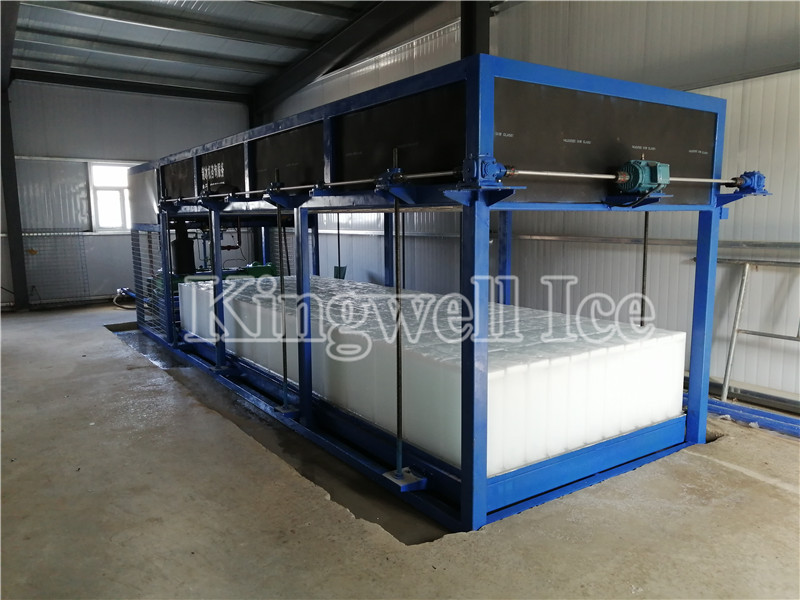

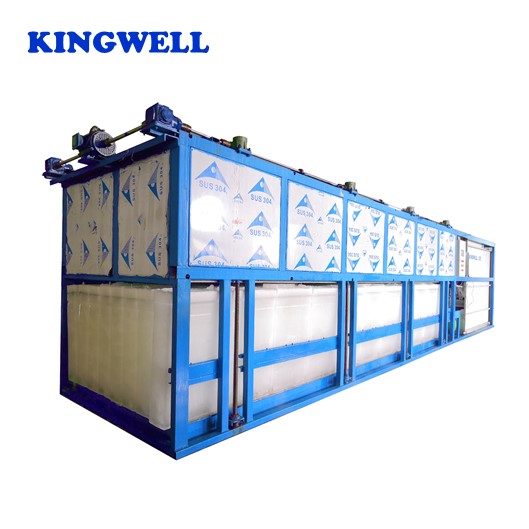

KW-DB10 (10 tons/day) Directly Cooling Block Ice Machine

  • Product details image
KW-DB10 (10 tons/day) Directly Cooling Block Ice Machine
Daily capacity: 10 ton/24h Power form: 220/380V,60hz,3p or 380/415V,50hz,3p Refrigerant:R22 or R404a Block ice weight: 25-50kg/customized Cooling way: water cooling

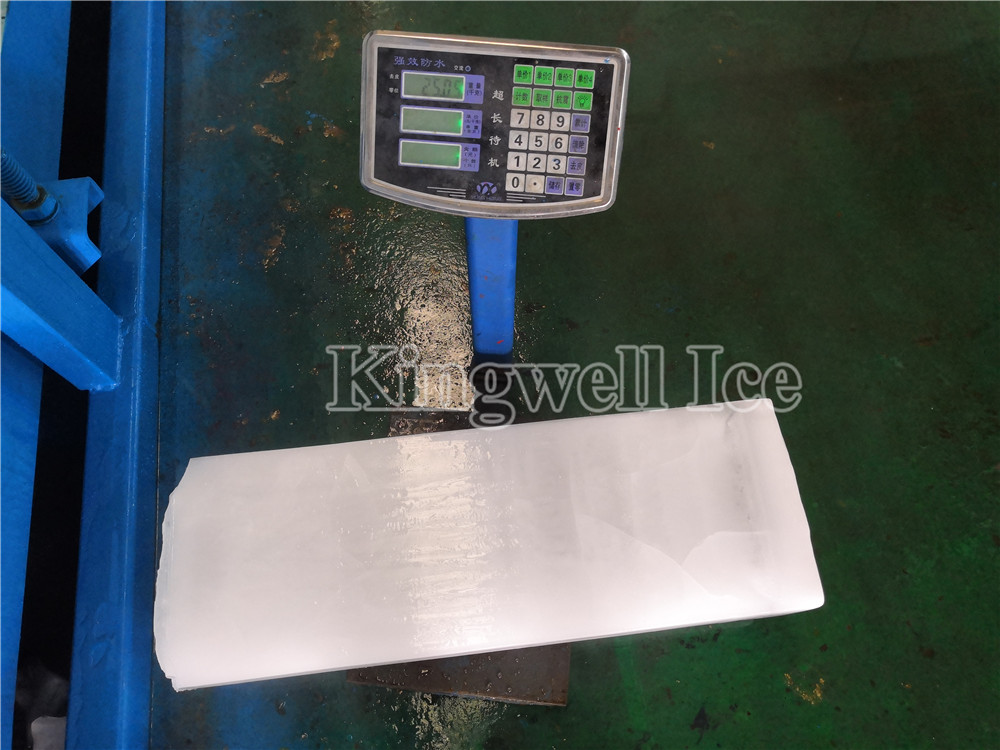

Block ice

Kingwell 10 tons directly cooling ice block machine KW-DB10 can produce 10 tons block ice in 24 hours, we have different sizes of block ice for your option:

Block ice weight

Ice size (thickness*width*height, mm)

Freezing time (hours)

Frequency of ice making per day (times)

5kg

80*120*600

4

6

10kg

80*250*600

4

6

15kg

100*300*600

4.8

5

20kg

100*400*600

4.8

5

25kg

150*330*600

10

2.4

30kg

150*400*600

10

2.4

50kg

150*500*800

10

2.4


Our standard design of block ice for KW-DB10 is 25kg, you can get 400 pieces of 25kg ice blocks per day. But you can choose any of your favorable size, or you can tell us your special size from your market, we can also customize the size and the machine to meet your clients requirement.



The kind of block is totally clean enough for drinking, most of our clients are used for human consumption, while it is alsoused in pelagic fishing, fresh keeping, temperature controlling and ice sculpture.Especially for hot regions, such as Africa, Middle East, Australia, etc.Whats more, the block ice has a dominant advantage than other types of ice, it’s solid, strong and not easy to melt, so it’s perfect matched for transport in long distance and fishing industry.


Features of the machine KW-DB10

  • Clean and food-grade block ice: this kind of block ice is totally sanitary for human consumption, it meets the food-grade standard.

  • Block ice can be changeable: 5-50kg per piece, you can choose what you like, we can also design according to customers’ special requirements.

  • Anti-rust and Anti-corrosion material: We use Aluminum plate to make ice cans, it is a good material anti-rust and anti-corrosive, the ice is clean and beautiful, meanwhile the lifespan can be longer.

  • Power consumption: about 80-100KW*H to make 1 ton ice, it depends on the ambient temperature.

Water consumption: about 1.1 tons water to make 1 ton ice.

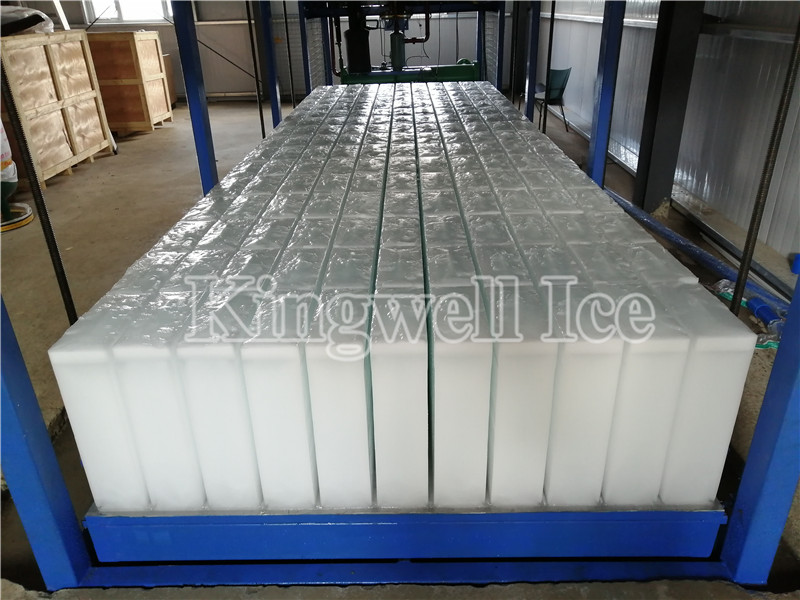

Ice moulds (Aluminum plate)


Specifications

Item

Capacity

(tons/day)

Refrigerant

Compressor Brand

Compressor

Power
(HP)

Weight of ice

(kg)

Cooling
Way

Dimension
(L*W*H,mm)

KW-DB 1

1

R22/R404A

Bitzer

4

5

Air

1800*1100*1200

KW-DB 2

2

R22/R404A

Bitzer

8

10

Water/Air

4260*900*1950

KW-DB 3

3

R22/R404A

Bitzer

12

10/25

Water/Air

3976*1468*2095

KW-DB 5

5

R22/R404A

Bitzer

25

10/25

Water

4660*1712*2180

KW-DB 6

6

R22/R404A

Bitzer

30

10/25

Water

5236*1790*2095

KW-DB 10

10

R22/R404A

Bitzer

2*25

25

Water

7800*2130*2400

Power Supply380~415V,50Hz,3 phase;

220~240V, 60Hz, 3 phases;

440~480V, 60Hz, 3 phases;

380V, 60Hz, 3 phases.

Working Conditions: Input Water Temp: 21;

Ambient Temp: 25;

Condensing Temp: 40;

The actual capacity will be changed by different ambient temperature and make-up water temperature, actually it will reach at least 80%, at most 130%.

Guangzhou Kingwell reserves the right to change specifications and design without notice.
