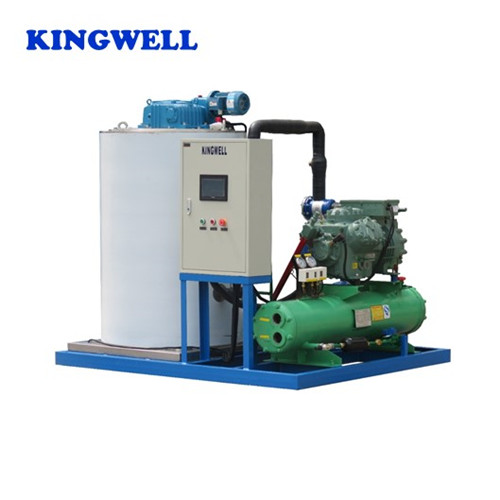

KW-F5 (5tons/day) Flake Ice Machine

  • Product details image
KW-F5 (5tons/day) Flake Ice Machine
Daily capacity: 5 ton/24h Power form: 220/380V,60hz,3p or 380/415V,50hz,3p Refrigerant:R22 or R404a Flake ice thickness: 1-6mm Cooling way: water cooling

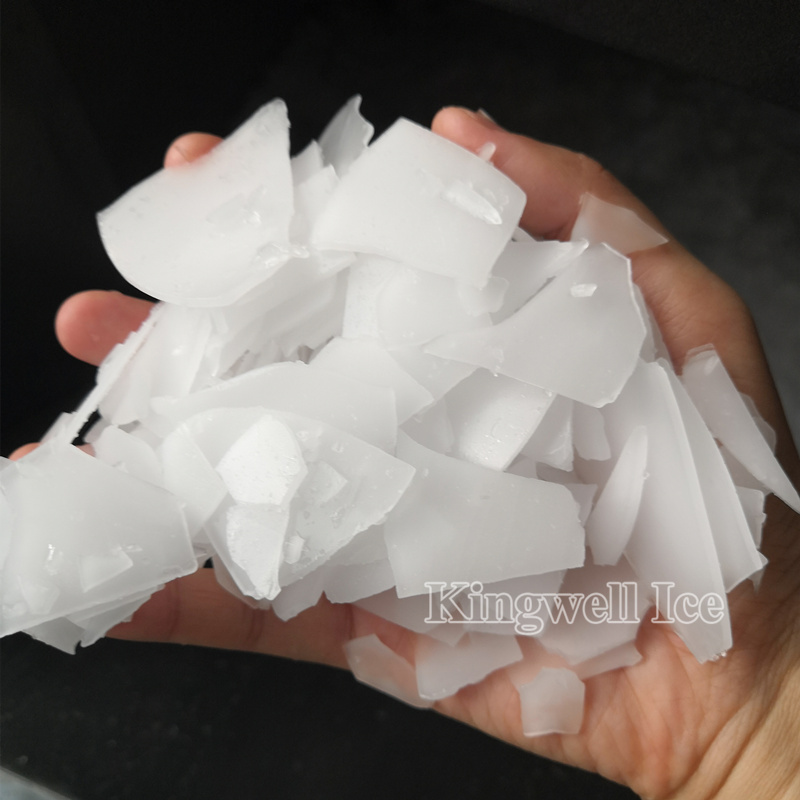

Flake ice

Kingwell 5 tons flake ice machine KW-F5 (well call this machine in short of KW-F5 below) can produce 5 tons flake ice in 24 hours.

The flake ice is pure, dry, smooth without any edges, it will not damage the cooling stuff. It is widely used to keep fresh of meat, chicken, fish, seafood, vegetables etc. And it often appears in markets, supermarkets, fishing boats, etc.


Features of the machine KW-F5

  • Simple refrigeration system: easy to operate and maintain, very less fault.

  • Intelligent control: we adopt PLC to control the ice making system, all the working process are controlled by the PLC, so it’s really easy to operate it.

  • Storage room for flake ice: We can design a storage room by insulation panels (like the picture showed) to install flake ice temporary. Of cource, this storage room can be equipped with cooling system.

  • Power consumption: about 70-80KW*H to make 1 ton ice, it depends on the ambient temperature.

Water consumption: about 1.05 tons water to make 1 ton ice.

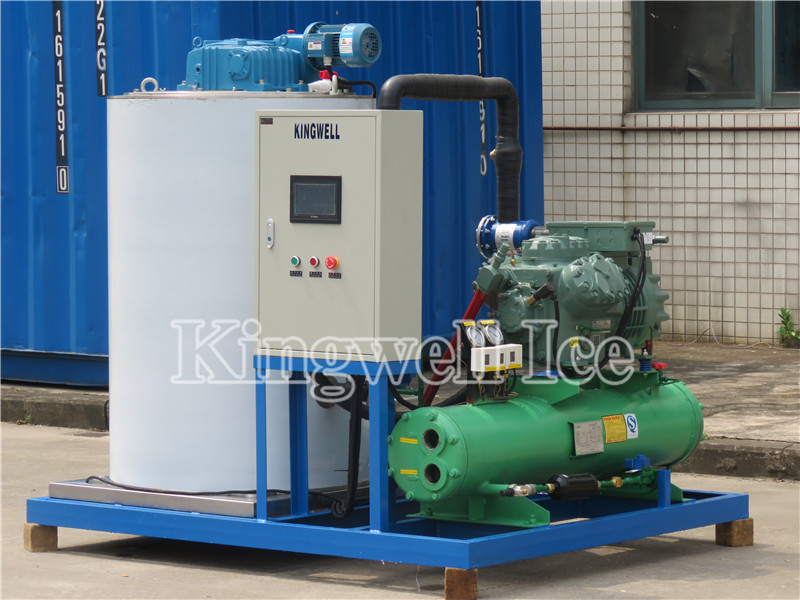

5 tons flake ice machine

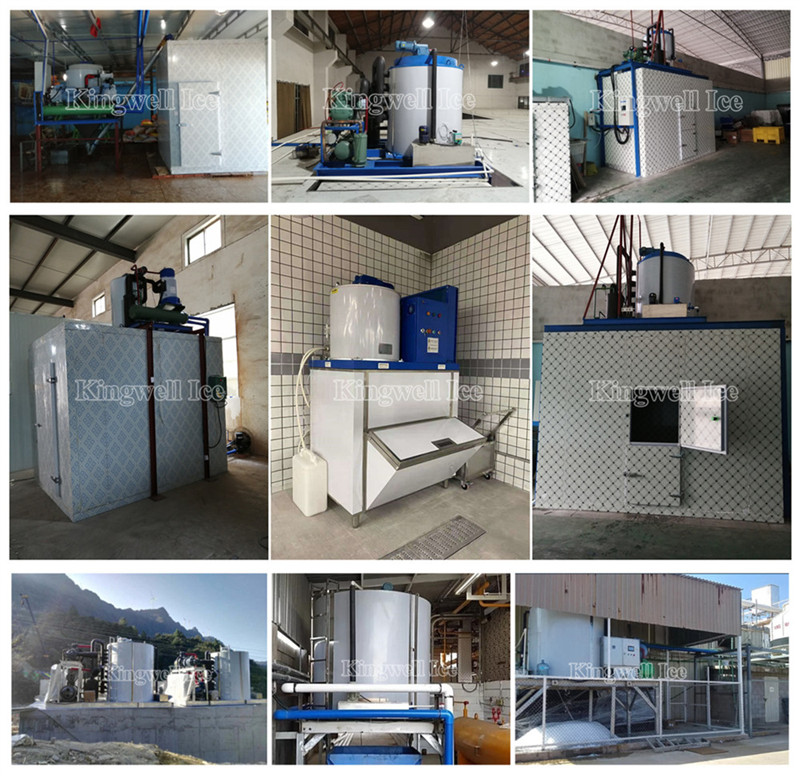

Flake ice machine with storage room

Layout of flake ice machine and storage room

Specifications

Item

Capacity
(tons/day)

Refrigerant

Compressor Brand

Compressor
Power(HP)

Cooling
Way

Dimension
(L*W*H,mm)

KW-F 05

0.5

R22/R404a

Danfoss

3

Air

1420*800*1020

KW-F 1

1

R22/R404a

Danfoss

6

Air

1420*840*1080

KW-F 2

2

R22/R404a

Manuerope

/Bitzer

10/8

Air

1770*1120*1220

KW-F 3

3

R22/R404a

Bitzer

12

Water/Air

1770*1130*1330

KW-F 5

5

R22/R404a

Bitzer

25

Water/Air

2100*1500*1580

KW-F 8

8

R22/R404a

Bitzer

40

Water

2400*2200*1850

KW-F 10

10

R22/R404a

Bitzer/Hanbell

40

Water

2800*2200*2020

KW-F 20

20

R22/R404a

Bitzer/Hanbell

90

Water

3600*2200*2560

Power supply: 380~415V,50Hz,3 phase;

220-240V, 60Hz, 3 phases;

440~480V, 60Hz, 3 phases;

380V, 60Hz, 3 phases.

Working Conditions: Input Water Temp: 21;

Ambient Temp: 25;

Condensing Temp: 40;

The actual capacity will be changed by different ambient temperature and make-up water temperature, actually it will reach at least 80%, at most 130%.

Guangzhou Kingwell reserves the right to change specifications and design without notice.
